Clear Sight & Compact Size

Outdoor Optical Carbon Fiber Tripod Kit

ST-124+VA-5X+BA-1

*Binoculars and spotting scope are sold separately.

Portable

BA-1
Compatible with
Binoculars

Waterproof
Design

Carbon Fiber

Triangle
Center Column

26.5mm
Tube Dia

Weight：

1.2kg

“Tri” To Challenge

The unique triangle shaped center column allows for a more compact design as well as a sturdier center section.

Easy Storage

Inspired by the principle of Triangle Stability, the ST tripod includes a triangular carbon fiber center column that successfully challenges the classic round shape design.

Convertible Center Column for Different Working Heights

The center column can be reversed to achieve ultra low shooting positions.

Product Details

1/4" and 3/8" screw ports allow for connecting two accessories at the same time

Pull out the center column locking knob to turn it 360° in locking state

VA - 5X Fluid Head

Quick Install & Detach

Learn from SIRUI Rapid System, side loading plate is also designed in this head to make installation easier and faster. Besides, you can finish mounting with only one hand.

Upgraded side loading plate with safety pin and flip lock.

Safety pin is designed to help prevent the equipment from accidentally falling off when the equipment mounted on the plate is moved back and forth.

Huge flip lock for easy operation.

Use the Allen key to fine adjust tightness of flip lock.

Fluid Style

Fluid head provides smooth and accurate operation to help create high-end videos. Moreover, this head works well with tripods, sliders or other accessories to meet different shooting needs.

Tilting range from -60° to +90° provides various shooting angles. Built-in handle makes it easy to adjust shooting angle.

Handle can be mounted on either left or right side for comfortable operation.

Compatible with Spotting Scope

Spotting Scope Tripod Kit:

ST-124+VA-5X+S6080A (*Spotting scope is sold separately.)

BA-1 Binocular Tripod Adapter

Mount your binoculars onto tripod or monopod for stable outdoor viewing.

*Binoculars is sold separately.

Aluminum Construction

Use the Allen key to further screw down the knob.

Stainless steel SUS303 construction,
super durable and stable

Wide Compatibility

The Arca-type base and 1/4"-20 threaded socket allow
you to quickly switch between different heads and tripods.

Arca-Type Base

Non Arca-Type Base

1/4"-20 Threaded Socket

Compatible with Binoculars

Binoculars Tripod Kit: ST-124+VA-5X+BA-1+B1042A（*Binoculars is sold separately.）

Binoculars Tripod Kit: ST-124+VA-5X+BA-1+B1042B-MD（*Binoculars is sold separately.）

Specifications

Model

ST-124

Material

Carbon Fiber

Sections

4

Max. Dia (mm/inch)

26.5/1.04

Min.Dia (mm/inch)

17.5/0.69

Min. Height (mm/inch)

375/14.8

Height (mm/inch)

1290/50.8

Max. Height (mm/inch)

1580/62.2

Retracted Height (mm/inch)

480/18.9

Weight (kg/lbs)

1.20/2.6

Max. Load (kg/lbs)

12/26.5

Model

VA-5X

Material

Aluminum Alloy

Base Dia.(mm/in)

49/1.9

Height(mm/in)

83/3.3

Weight(kg/lb)

0.55/1.2

Max Load(kg/lb)

3/6.6

Model

BA-1

Material

Aluminum Alloy

Dimensions(mm/in)

64*38*82/2.52*1.50*3.23

Base

Arca-type Base

Threaded Stud

1/4" Screw

Weight(kg/lb)

0.07/0.15

Max Load(kg/lb)

5/11.02

Included

Binocular Tripod Adapter + Allen Key

Tripods for Observation

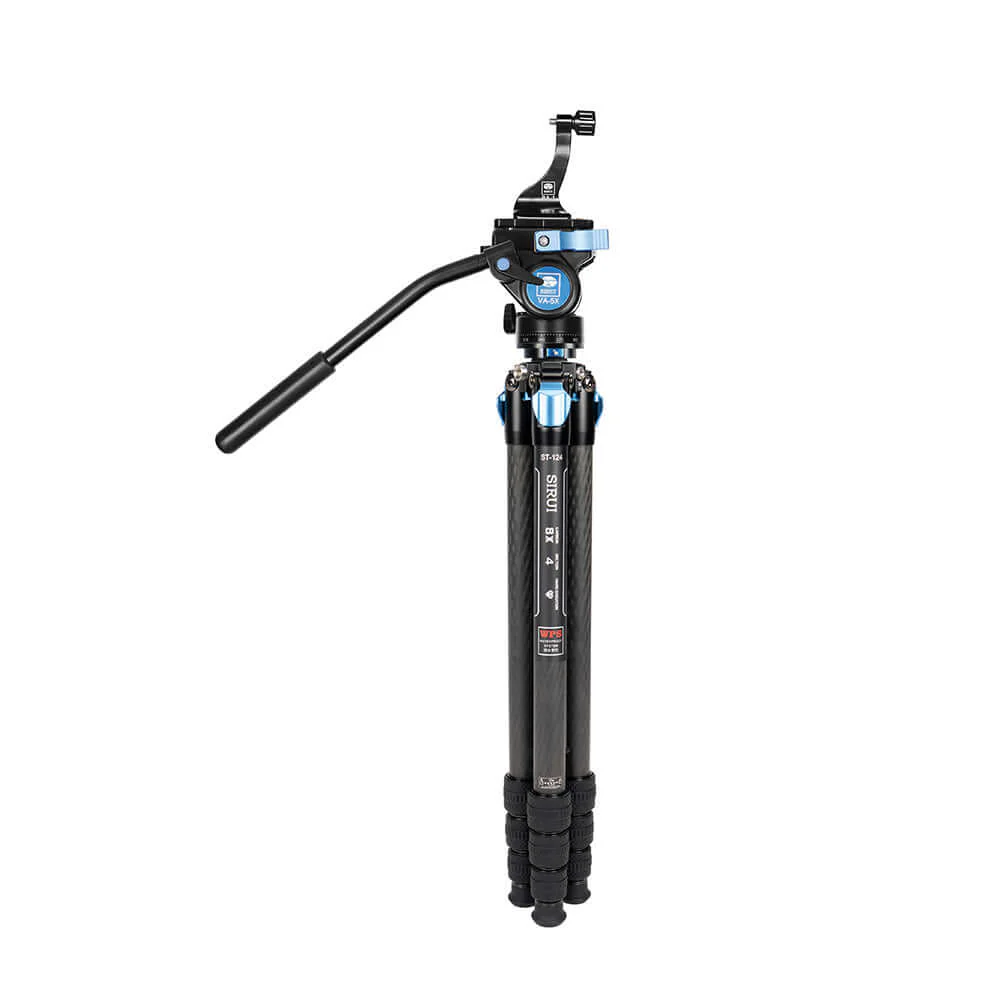

SIRUI ST-124+VA-5X Waterproof Carbon Fiber Tripod Kit With Binocular Tripod Adapter

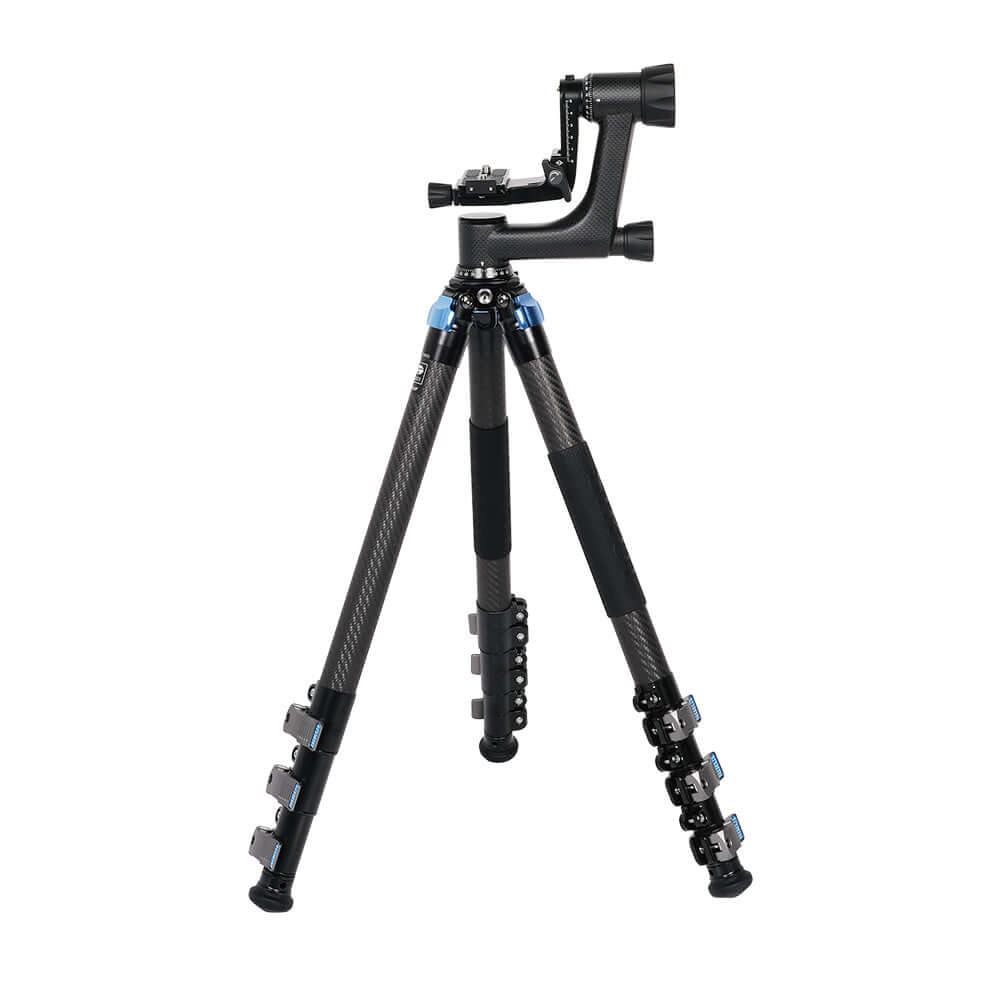

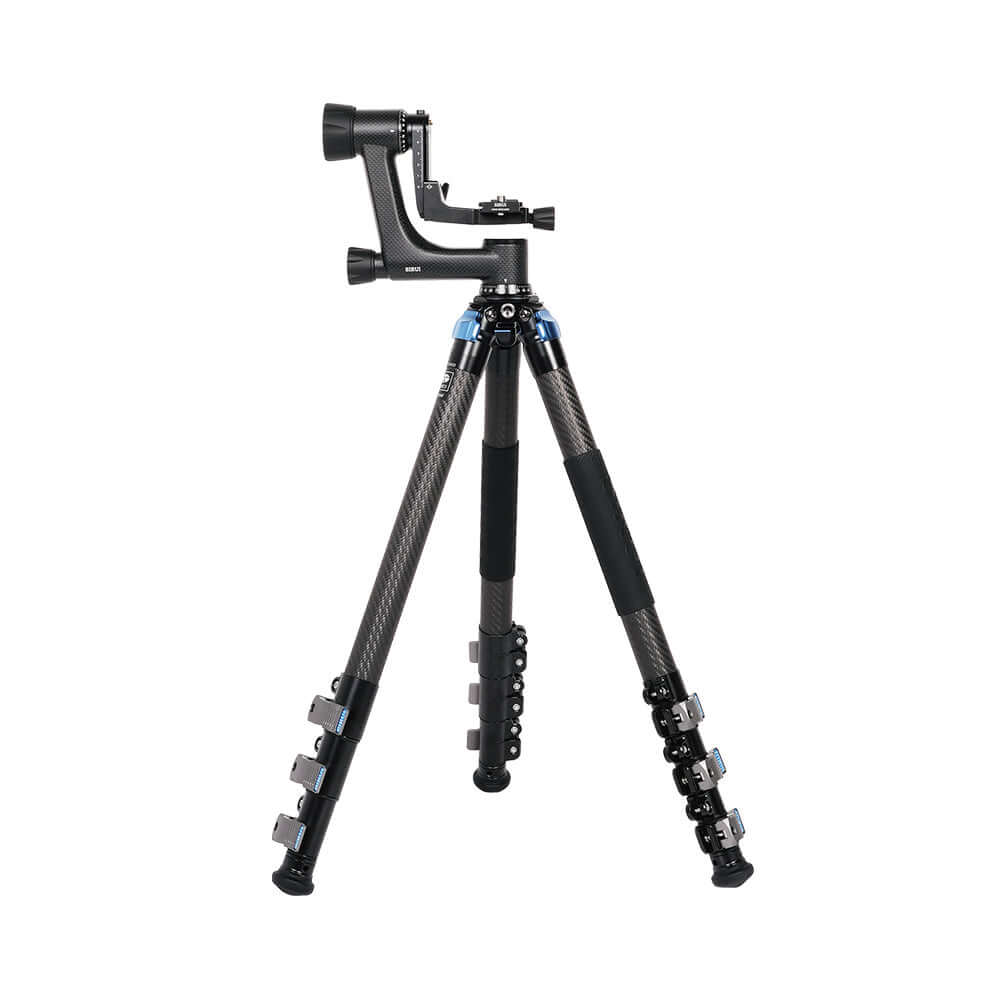

SIRUI L-324F+PH-10 Professional Outdoor Tripod Kit
